Binks 2-Gal Galvanized Carbon Steel Pressure Tanks

Binks Range of High Quality Pressure Feed Tanks and Paint Supply Containers

Overview

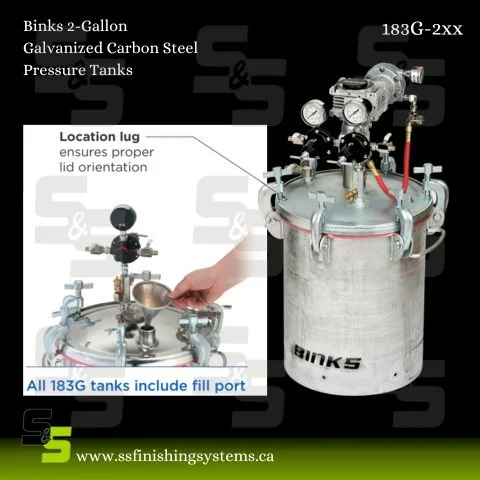

Binks 2-Gallon Galvanized Carbon Steel Pressure Tanks are compact, durable, and designed for consistent, controlled fluid delivery in industrial coating and finishing applications. Constructed from heavy-gauge galvanized carbon steel, they provide excellent corrosion resistance and are ASME-certified for safe operation at pressures up to 110 PSIG. Perfect for spraying solvent-based or waterborne materials (with liners), these tanks are ideal for small-batch production, touch-up work, and mobile operations.

Key Feature

Compact Size: Ideal for smaller production runs and portable setups
Durability: Galvanized carbon steel resists corrosion and wear
Versatility: Multiple regulator and agitator combinations for various coatings and viscosities
Safety: ASME-certified construction for reliable, high-pressure operation
Easy Maintenance: Compatible with disposable liners to reduce cleaning time and material waste

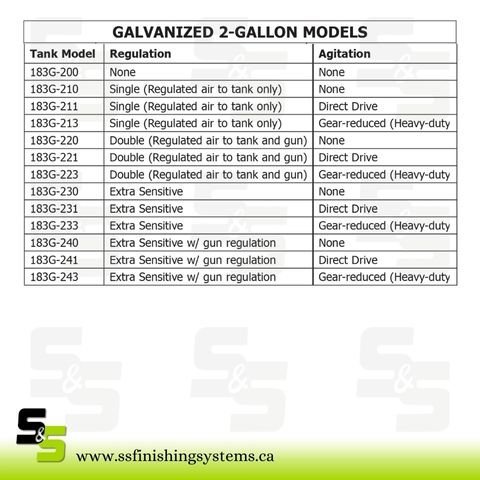

Model Configurations

Tank Model	Regulation	Agitation
183G-200	None	None
183G-210	Single (Regulated air to tank only)	None
183G-211	Single (Regulated air to tank only)	Direct Drive
183G-213	Single (Regulated air to tank only)	Gear-reduced (Heavy-duty)
183G-220	Double (Regulated air to tank and gun)	None
183G-221	Double (Regulated air to tank and gun)	Direct Drive
183G-223	Double (Regulated air to tank and gun)	Gear-reduced (Heavy-duty)
183G-230	Extra Sensitive	None
183G-231	Extra Sensitive	Direct Drive
183G-233	Extra Sensitive	Gear-reduced (Heavy-duty)
183G-240	Extra Sensitive w/ gun regulation	None
183G-241	Extra Sensitive w/ gun regulation	Direct Drive
183G-243	Extra Sensitive w/ gun regulation	Gear-reduced (Heavy-duty)

Download

Binks Pressure Tanks 03-459-01

2-Gallon ASME Tank Manual 77-3132

Technical Specifications

SPECIFICATIONS	GALVANIZED TANKS
Maximum Working Pressure	110 psi
Tank Shell	SA-414 Steel, Galvanized (Zinc)
Tank Lid	SA-414 Steel, Galvanized (Zinc)
Fluid Tube	3/8 in. Steel Pipe, Galvanized
Fluid Outlet (Elbow)	Steel, Zinc Plate
Fluid Valve, Outlet	Brass, Nickel Plate 3/8-18 NPS(M)
Agitator Paddle/Propeller	Nylon, Glass Filled
Agitator Shaft	Steel, Zinc Plate
Agitator Shaft Seal	Engineered PTFE, Stainless Steel
Air Manifold	Steel, Zinc Plate
Plug (Air Manifold Coupling)	Steel, Zinc Plate
Bottom Outlet (Optional Kit)	304 Stainless Steel 3/4-14 NPS(M)
