Direct Drive Agitaors for Light Body Materials in Open-top 55 Gallon Drums
Overview
Binks offers a series of Direct Drive Agitators designed for 55-gallon drums, optimized for light-body materials like stains and lacquers. These units use air-driven motors for efficient mixing without external gears.
Key Feature
-
Application: Open-top 55-gallon drums, suitable for light-body materials.
-
Motor: Air-driven, 1 HP air motor (Model 83-1922)
-
Speed: Up to 3,000 RPM (shaft speed)
-
Air Supply: Minimum 60 psi gauge pressure, with air filter/moisture trap recommended.
-
Propeller Shaft: ½” stainless steel
-
Propellers: 2 blades, diameter 4½” (114.3 mm)
-
Maximum Fluid Speed: 3,000 RPM max
-
Lubrication: Use SAE 10W non-detergent oil (10–20 drops daily) to maintain motor health.

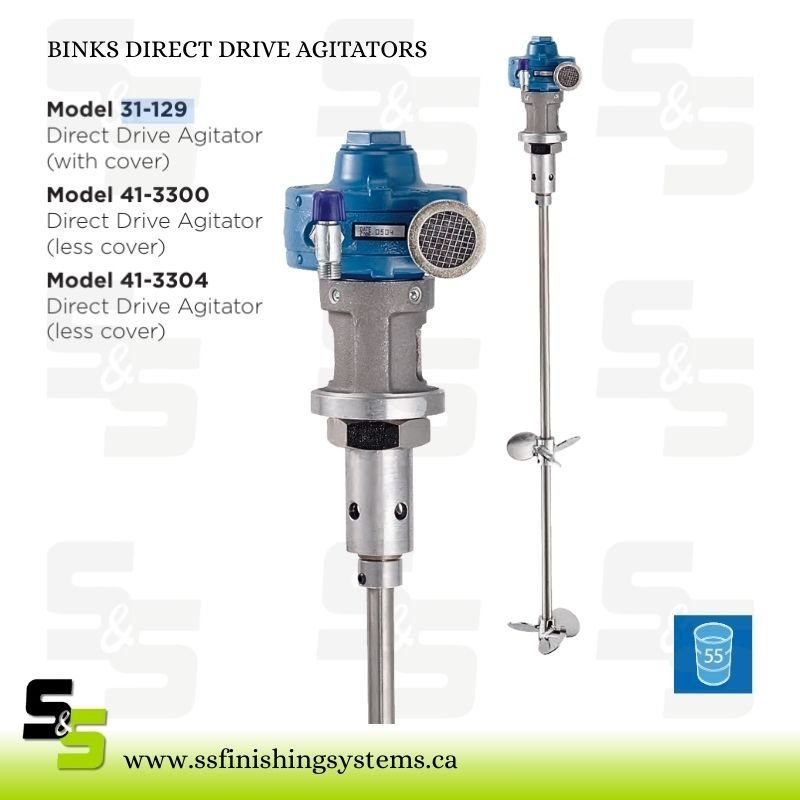

Model Configurations
| Model | Cover Included | Propeller Material | Shipping Weight |
|---|---|---|---|
| 31-129 | Yes | Stainless Steel | ~32 lb (14.5 kg)(Codinter) |
| 41-3300 | No | Aluminum | ~12 lb (5.4 kg)(Codinter) |
| 41-3304 | No | Stainless Steel | ~13 lb (5.9 kg)(Codinter) |
