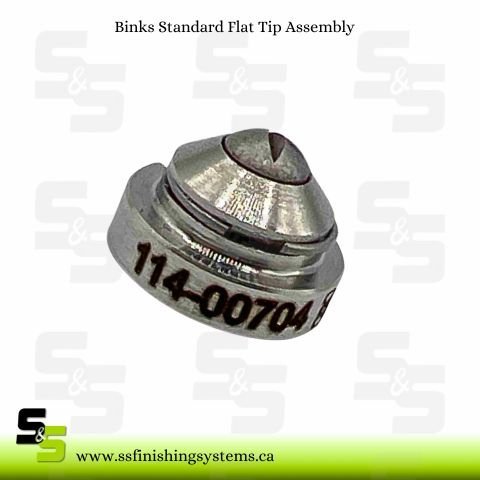

The Binks Standard Flat Tip Assembly is engineered to deliver consistent, high-quality spray performance when used with Binks AA series air-assist airless guns (models AA4400M, AA1600M, etc.).
Overview
Available in a wide range of orifice sizes (.007″–.035″) and fan widths (4″–18″), these tips are crafted for high-performance coatings including solvent-based, waterborne, and abrasive materials.
Key Feature
-
Orifice sizes from .007″ up to .035″, ideal for fan widths of 4–18″ at 1000–2200 PSI
-
Optimized for the AA4400M and AA1600M airless spray guns
-
Available in UHMW or Tungsten Carbide fluid seats for different material types (abrasive vs fine coatings)Schweitzer & Crosson+1Schweitzer & Crosson+1
-
Reversible tip design for easy replacement and cleaning
-
Delivers consistent pattern quality and reduced overspray thanks to flat tip precision
Available Variants

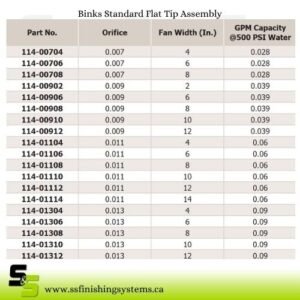

| Part No. | Description | Orifice | Fan Width (In.) | GPM Capacity @500 PSI Water |
| 114-00704 | TIP ASSEMBLY | 0.007 | 4 | 0.028 |
| 114-00706 | TIP ASSEMBLY | 0.007 | 6 | 0.028 |
| 114-00708 | TIP ASSEMBLY | 0.007 | 8 | 0.028 |
| 114-00902 | TIP ASSEMBLY | 0.009 | 2 | 0.039 |
| 114-00906 | TIP ASSEMBLY | 0.009 | 6 | 0.039 |
| 114-00908 | TIP ASSEMBLY | 0.009 | 8 | 0.039 |
| 114-00910 | TIP ASSEMBLY | 0.009 | 10 | 0.039 |
| 114-00912 | TIP ASSEMBLY | 0.009 | 12 | 0.039 |
| 114-01104 | TIP ASSEMBLY | 0.011 | 4 | 0.06 |
| 114-01106 | TIP ASSEMBLY | 0.011 | 6 | 0.06 |
| 114-01108 | TIP ASSEMBLY | 0.011 | 8 | 0.06 |
| 114-01110 | TIP ASSEMBLY | 0.011 | 10 | 0.06 |
| 114-01112 | TIP ASSEMBLY | 0.011 | 12 | 0.06 |
| 114-01114 | TIP ASSEMBLY | 0.011 | 14 | 0.06 |
| 114-01304 | TIP ASSEMBLY | 0.013 | 4 | 0.09 |
| 114-01306 | TIP ASSEMBLY | 0.013 | 6 | 0.09 |
| 114-01308 | TIP ASSEMBLY | 0.013 | 8 | 0.09 |
| 114-01310 | TIP ASSEMBLY | 0.013 | 10 | 0.09 |
| 114-01312 | TIP ASSEMBLY | 0.013 | 12 | 0.09 |
