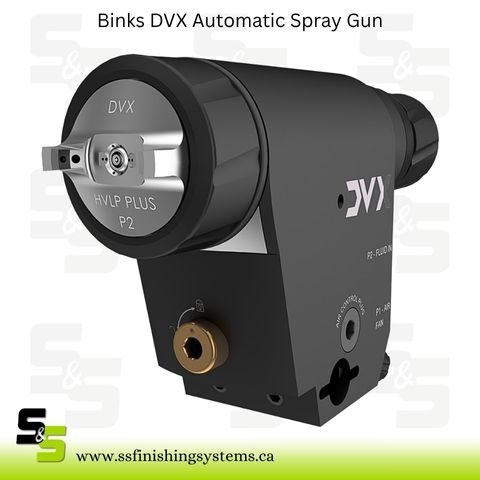

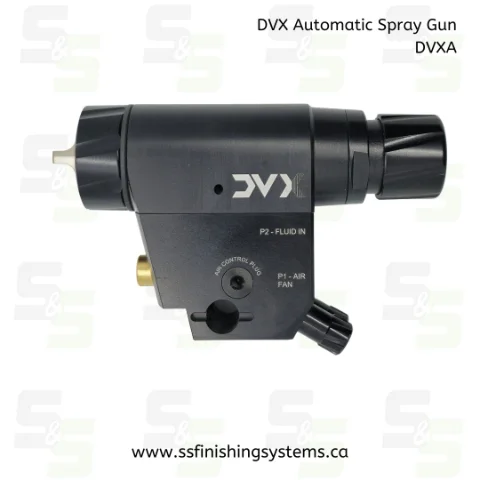

DVX Automatic Spray Gun-S Universal

Next Level Design To Maximize Next Level Performance

The new Binks DVX Automatic Spray Gun  series revolutionizes air spray guns thanks to an innovative redesign of the fluid body and air caps – allowing us to mitigate turbulence that occurs between the paint and air when the trigger is pulled.

Overview

The new Binks DVX series revolutionizes air spray guns thanks to an innovative redesign of the fluid body and air caps – allowing us to mitigate turbulence that occurs between the paint and air when the trigger is pulled. The result is higher flow rates for fast application, higher transfer efficiency to reduce material use, the most consistent pattern on the market, and the best spray finish quality ever. Binks DVX air spray guns excel at low pressure air spray applications of liquid coatings including waterborne and solventborne, high solid urethanes, epoxies, and enamels.

Key Feature

Best Air Spray Finish Quality

• Reduces orange peel, eliminates mottling
• Most consistent pattern on the market
• Capable of handling range of materials across three pressure air caps and two gravity air caps

Faster Application

• High flow rate to keep up with any painter
• Large, consistent pattern for less passes
• Air cap orientation lock allows more spray time
• Reduces downtime: easy to clean, less material buildup at air cap

Quick Release Air Cap

• Hard-anodized air cap retaining ring features a quick release thread, requiring less than a full-turn rotation for fast and easy cap removal

Higher Transfer Efficiency

• Reduces material use by 15% compared to other non-electrostatic air spray applications
• Works at low and high inlet air pressures
• Sprays at 2 bar, reducing air consumption

Turbulence Control

• New turbulence control design innovation eliminates corners that create compression zones, separ

SKU Variants

Download

DVX Gun Brochure 03-422-01

DVX Automatic Gun Sales Literature 03-423-01 EN

DVX Automatic Gun Manual SB-E-3-012 EN
