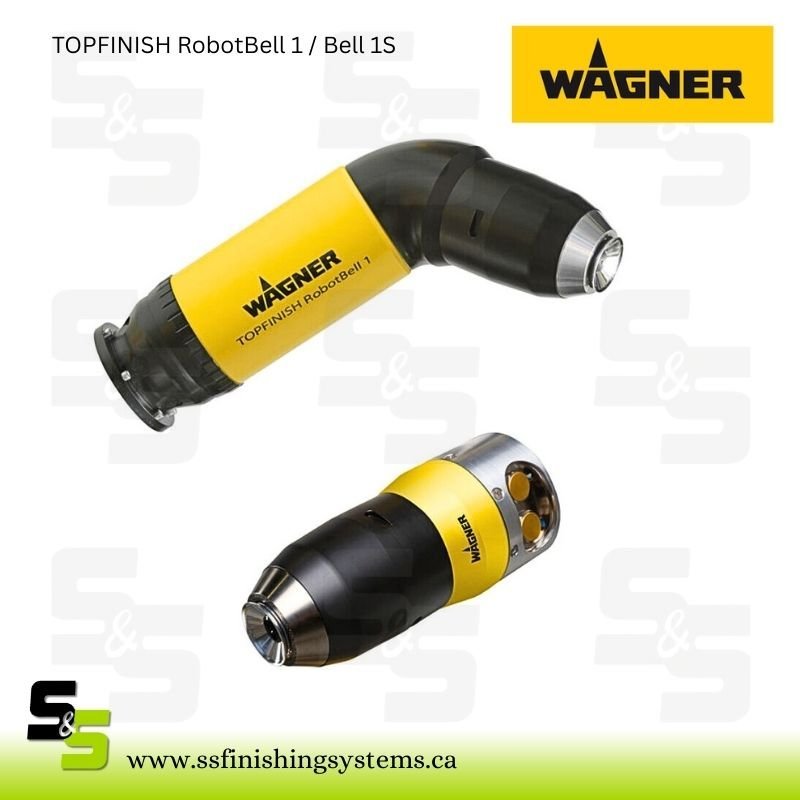

TOPFINISH RobotBell 1 Solution for universal coating applications
Overview
High-speed rotation atomizer (internal charge)
The new high-speed rotation atomizers with internal charging are suitable as all-round devices for water- and solvent-based coatings. They enable a high degree of automation and excellent surface quality with very high application efficiency.
Key Feature
High efficiency
The air consumption is about 20% lower than comparable products. Depending on material, flow rate and workpiece, an application efficiency of over 90% can be achieved.
Reliable
Optimum coating results thanks to very fine atomization.
Flexible applications

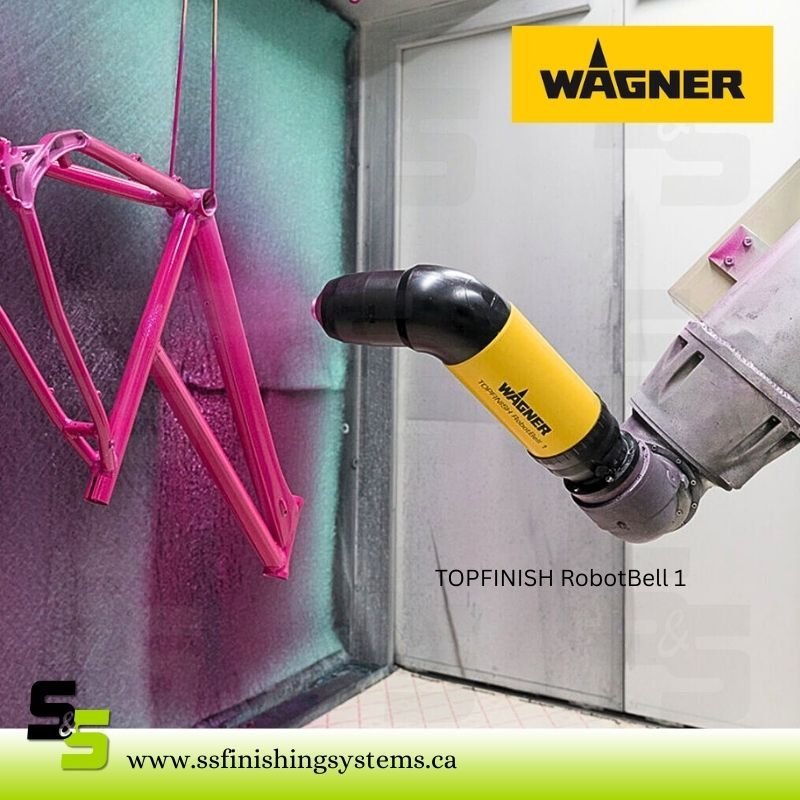

Great variability through individual adjustment of the spray jet with two shroud airs – depending on the requirements of the workpiece geometry, both a large, soft spray cloud and a small, hard spray jet can be generated. Large selection of bell plates available. The TOPFINISH RobotBell 1 is used together with lifting devices and linear axes.
Easy to maintain
Minimal effort for installation and maintenance thanks to the intelligent hose change system. Simple replacement of nozzles, valves and bell cups with standard tools or a universal tool.
Technical Data
| Application area | Metal coating, Plastic coating, Wood coating |
|---|---|
| Application technique | Airspray – Conventional, Rotation atomization, Electrostatic solvent-based, Electrostatic water-based |
| Processable materials | Water-borne, Solvent-borne, shear sensitive, sensitive to moisture |
| Material wetted parts | Stainless steel, Consistal (nickel plated), Titanium |
| Weight | 5.1 kg |
| Max. material pressure | 8 bar |
| Max. volumetric flow | 0.8 l/min |
| Nozzle size | 0.8-1.7 mm |
| Operating temperature | 15-50 °C |
